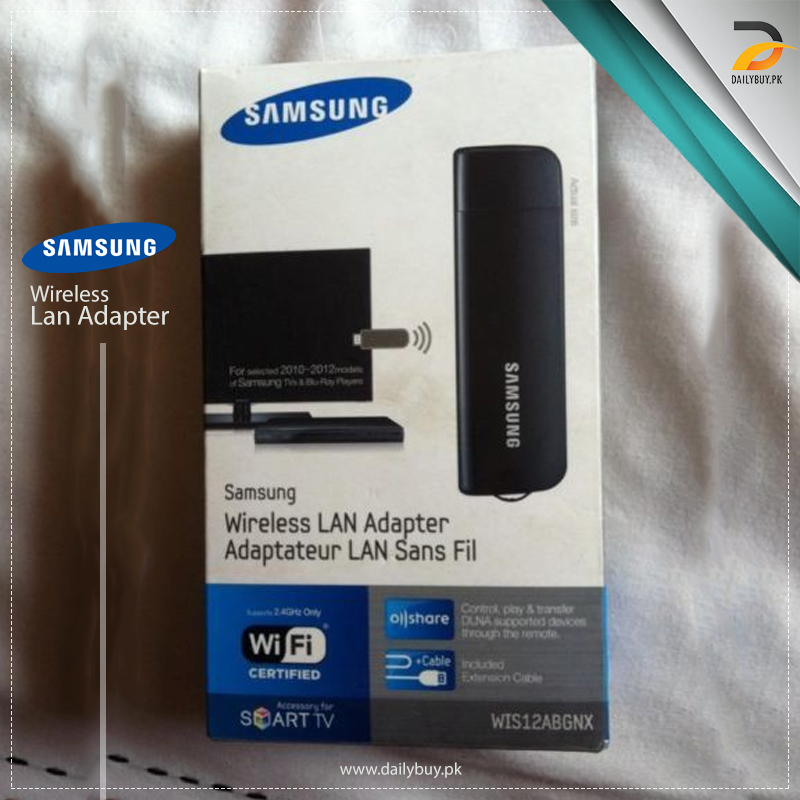

Samsung Wis12Abgnx Wireless LAN Adapter

Samsung Wis12Abgnx Wireless LAN Adapter
Click image for Gallery
  • Availability: Inventory
  • Rs 2,999.00

    Rs 2,399.00

Description :

Wireless Lan Adapter WIS12ABGNX
Control your home entertainment-wirelessly
Features:

High standards. High performance
Ultra-connectivity means ultra-convenience
Access to internet-based content via Smart Hub

Enjoy a greater wireless connection
Expand your wireless range and signal by connecting the dongle to your Smart TV. The Samsung wireless dongle is the easiest way to connect to not only the internet but also your DLNA-certified multimedia devices. It keeps your home entertainment system connected with simple controls and doesn't require other software. And to increase the wireless range and strengthen the signal, connect the dongle to the Smart TV with the included extension cable. Make the jump to easier connectivity that gives you more.

Transform to smarter TV connectivity
Use the LAN adapter to wirelessly access content for your Smart TV from the internet or from your digital camera, mobile phone, Note PC or other DLNA-certified multimedia devices. It communicates with your Smart Hub and links instantly with all elements of your Samsung home-entertainment system, giving you complete and easy control. Supported by the latest wireless LAN protocols - 802.11n, 802.11a, 802.11b and 802.11g, as well as DLNA 1.5 - easily access and connect to Samsung's AllShare and directly stream content from devices to your TV.


Tech Specs:

Output Power

IEEE 802.11a 11dBm at 54Mbps
IEEE 802.11b 17dBm at 11, 5.5, 2, and 1Mbps
IEEE 802.11g 14dBm at 54 Mbps
IEEE 802.11n (2.4GHz) 14dBm (20MHz) / 12dBm (40MHz)
IEEE 802.11n (5GHz) 11dBm (20MHz) / 9dBm (40MHz)

Compatibility

BD Player 2010 C5 series2011 D53 - D55BD E5500
HES 2010 C5 series2011 D51 - D53 (D5000~D55, D7000 are only supported in Europe)2012 E4200, 4500
LCD TV 2010 C550 and above2011 D530 and above
LED TV 2010 C5000 and above2011 D5000~D642012 EH 4500, EH 5300, EH 5400, ES 5500,ES 5700
Plasma TV 2010 C550 and above (C540 is only supported in North America)2011 D550 - D642012 E 490, 550 (Korea, Europe & CIS)

Standard

IEEE 802.11a/b/g/n Yes

Host Interface

USB 2.0

Frequency Range

2.4120 - 2.4835GHz / 5.15 - 5.85GHz

Security

Security 64/128bit WEP, WPA /WPA2, 802 1x, WPS

Data Rate

IEEE 802.11a/g 54, 48, 36, 24, 18, 12, 9 and 6Mbps
IEEE 802.11b 11, 5.5, 2 and 1 Mbps
IEEE 802.11n Up to 300Mbps (40MHz / spatial streams:2)

Sensitivity

IEEE 802.11a/g -68dBm at 54Mbps
IEEE 802.11b -84dBm at 11Mbps
IEEE 802.11n -68dBm (20MHz) / -65dBm (40MHz)

Dimension (WxHxD)

Package 95 x 165 x 30 mm
Set 26.6 x 84.0 x 16.0mm

Ideal For Music, Photo

IEEE 802.11a/b/g/n Recommended
Ideal For Streaming HD Video
IEEE 802.11a/b/g/n(2.4GHz) Not recommended
IEEE 802.11n (5GHz) Recommended

Ideal For Streaming SD Video

IEEE 802.11a/b/g/n Recommended

Weight

Package 103g
Set 17g

Accessory

User Manual Yes
AV gender Yes
USB Extension Cable Yes
Power consumption
TX (Transmitter) 500mA
RX (Receiver) 300mA

KEY FEATURES
Specification
Condition: New (With Bulk Packaging)
MPN: WIS12ABGNX
Dimension: 26.6 x 84 x 16 cm (10.5 x 33.1 x 6.3 inch)
Weight: 17g / 0.6Oz2010 (C Models): HT-C5XXX Read Before Purchase!
1) Check your TV model first! Works with 2010-2013 Samsung Smart TV and Blu-ray Players. (Detail model list below)
2) Will not turn your TV to Smart TV if your TV is not a SMART TV! (Smart TV has Smart Hub software built-in.)

3) You will not need it if your smart TV has built-in WiFi.
4) NOT FOR OTHER brands, eg Panasonic, Sony, etc.


Features

Transform to Smarter TV Connectivity
Use the LAN adapter to wirelessly access content for your Smart TV from the internet or from your digital camera, mobile phone, Note PC or other DLNA-certified multimedia devices.

Enjoy a Greater Wireless Connection
Expand your wireless range and signal by connecting the dongle to your Smart TV. The Samsung wireless dongle is the easiest way to connect not only the internet but also your DLNA-certified multimedia devices.

Link Entertainment System with Smart Hub
It communicates with your Smart Hub and links instantly with all elements of your Samsung home-entertainment system, giving you complete and easy control.


Compatible Model
LED TV
2010 (C Models): C5000 and above
2011 (D Models): D5000 - D64XX (Except for D5003)
2012 (E Models): EH4500 (Not for Europe), EH5300 (Not for South & North America), EH5400, ES5500, ES5700
2013 (F Models): F4500, F5300
